Opening notebook Toshiba Satellite Pro SP4270

(Updated Aug 12 2012)
(Updated Aug 29 2013)

Introduction

The CPU fan of my old notebook, a 2000 Toshiba Satellite Pro SP4270, stopped working: cpu and motherboard temperatures raised above 70C and 60C, while they usually were about 40-45C and rarely reached 50C.
The most likely cause is dust on the fan, so I decided to open the notebook to make some cleaning.

Steps

Here are the steps to dismount the notebook: I also caught the opportunity to clean the keyboard under the keys, which you can imagine how much dust was hiding after 8 years of use; so I took away every single key, pulling it towards left and then towards right. Removing and cleaning the keys is quite risky, in fact a key has broken in two parts while cleaning it, and another one lost one of the plastic pins that fasten the key to its support. I had to use some glue to repair them, and the one without the pins now is loose; fortunately it's the Fn key, which I seldom use.

Aug 12 2012
New problem: the display becomes dark when it's opened more than 90 degrees. I opened up the notebook (and I added a few more precise steps in the above description) to see if I could identify the cause of this problem: I didn't find anything visibly wrong, so I just removed the metal lock which was keeping the display cable in place and I moved a little bit the cable; this was just enough to solve the problem! I remounted the metal lock and reassembled the notebook, and now the display works like a charm at all inclinations, no more dark screens.

Pictures

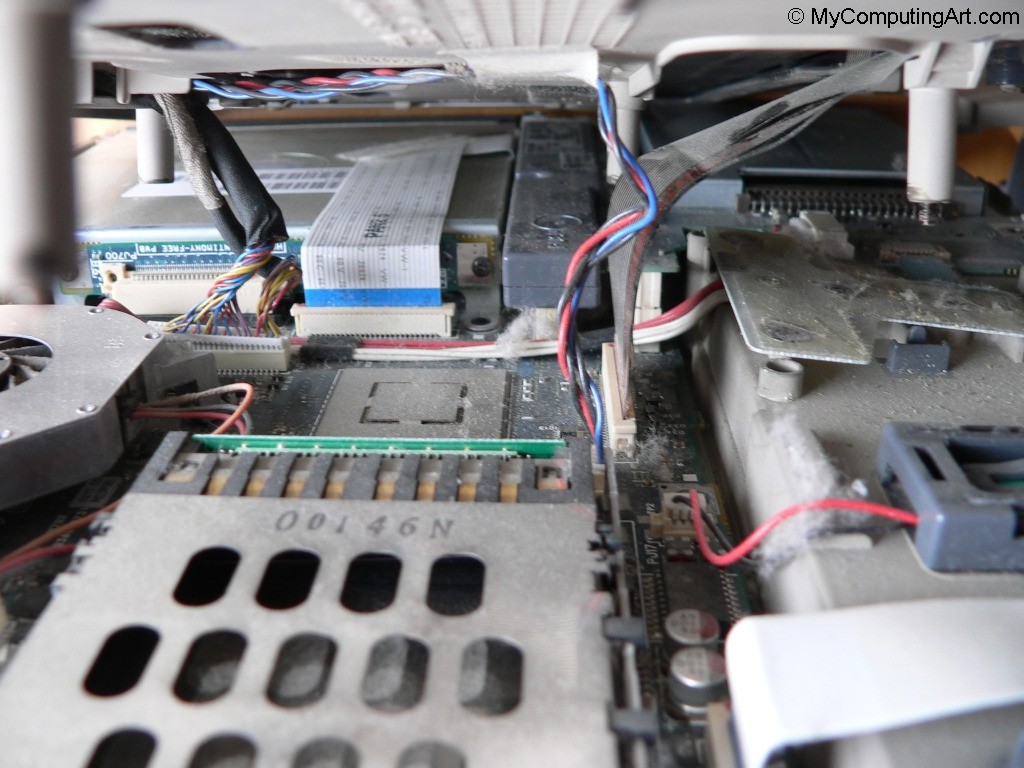

Inside
199.87 KB

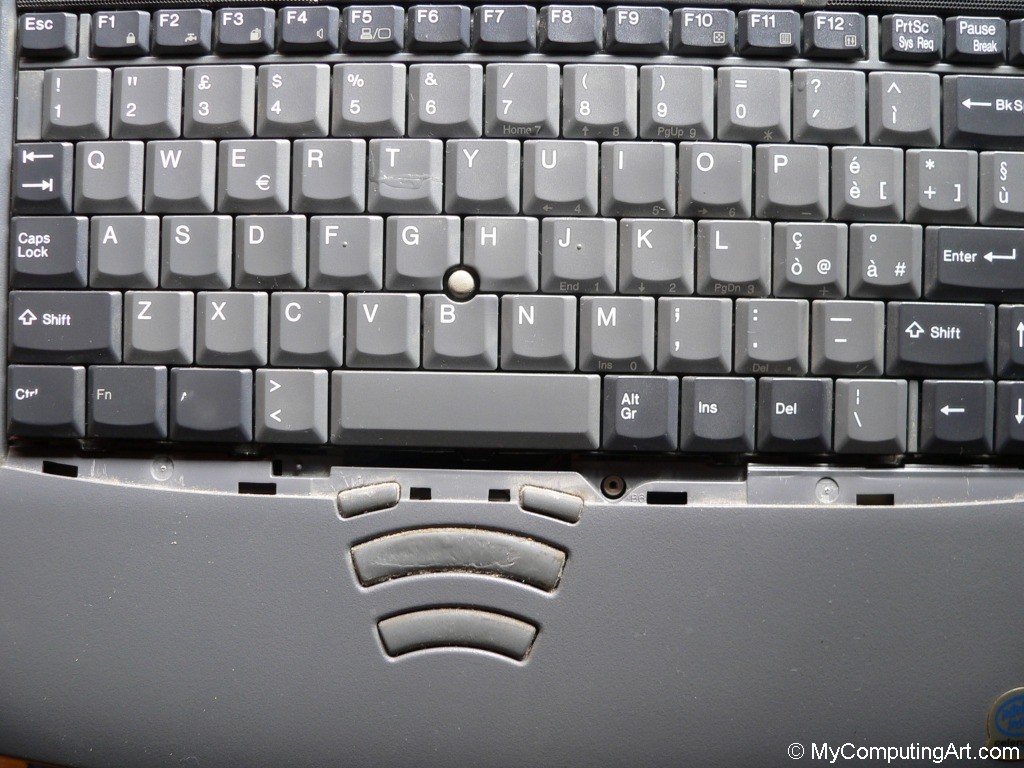

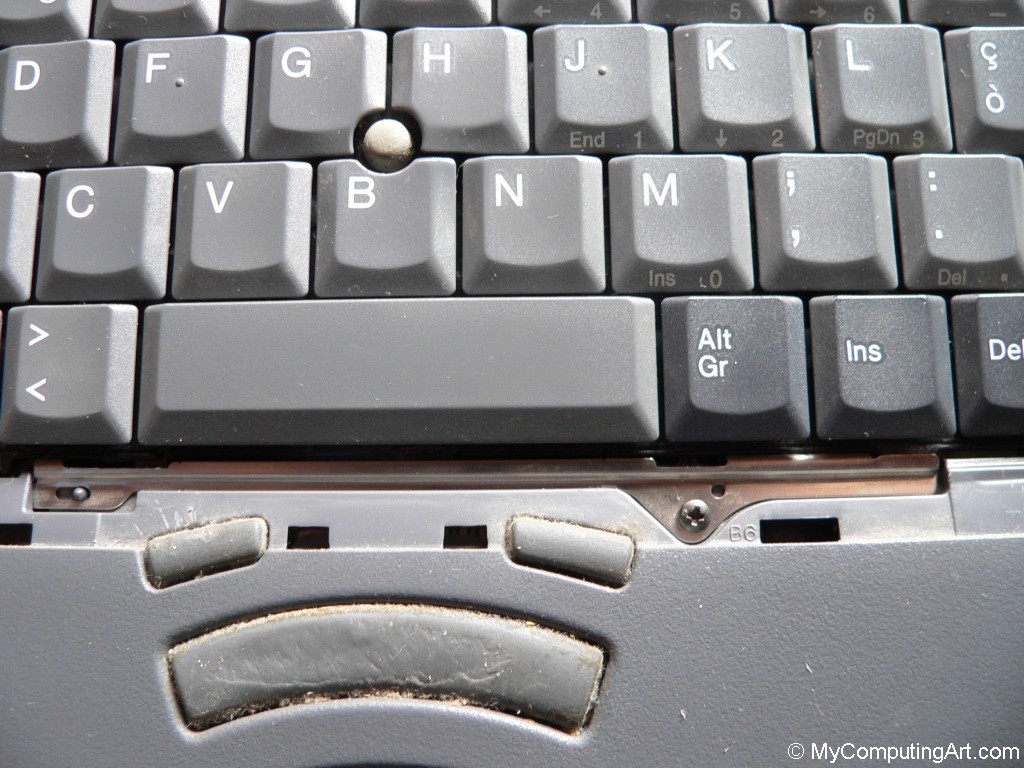

Mounting kbd
263.38 KB
Mounting kbd
233.73 KB

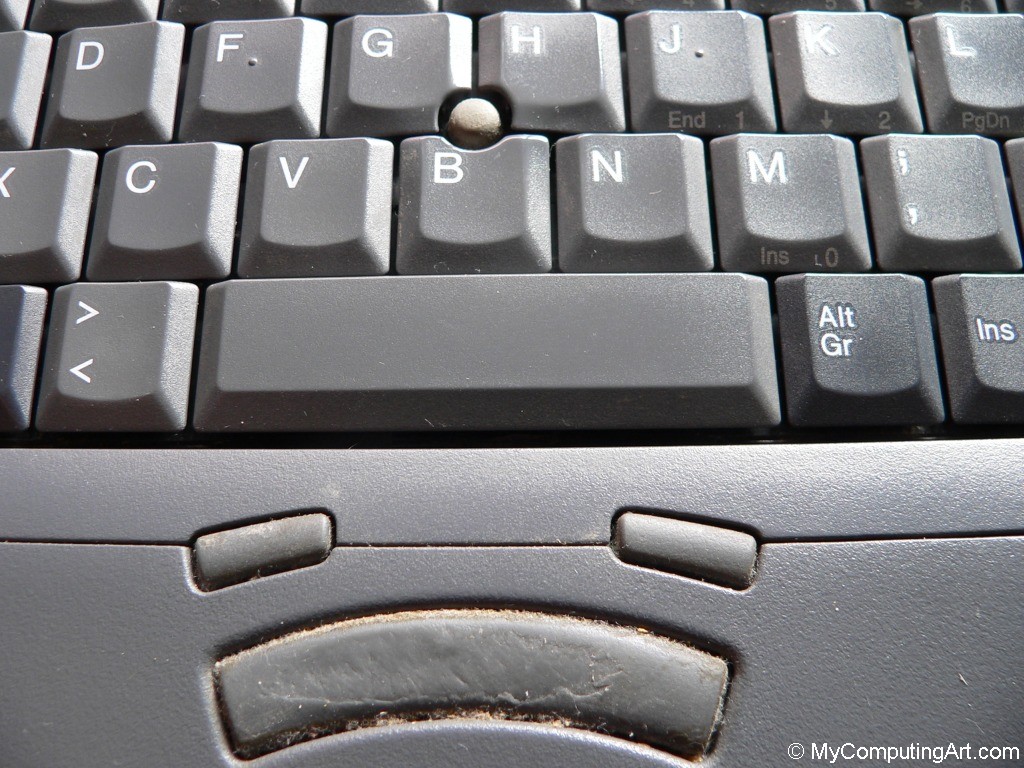

Mounting kbd
224.08 KB

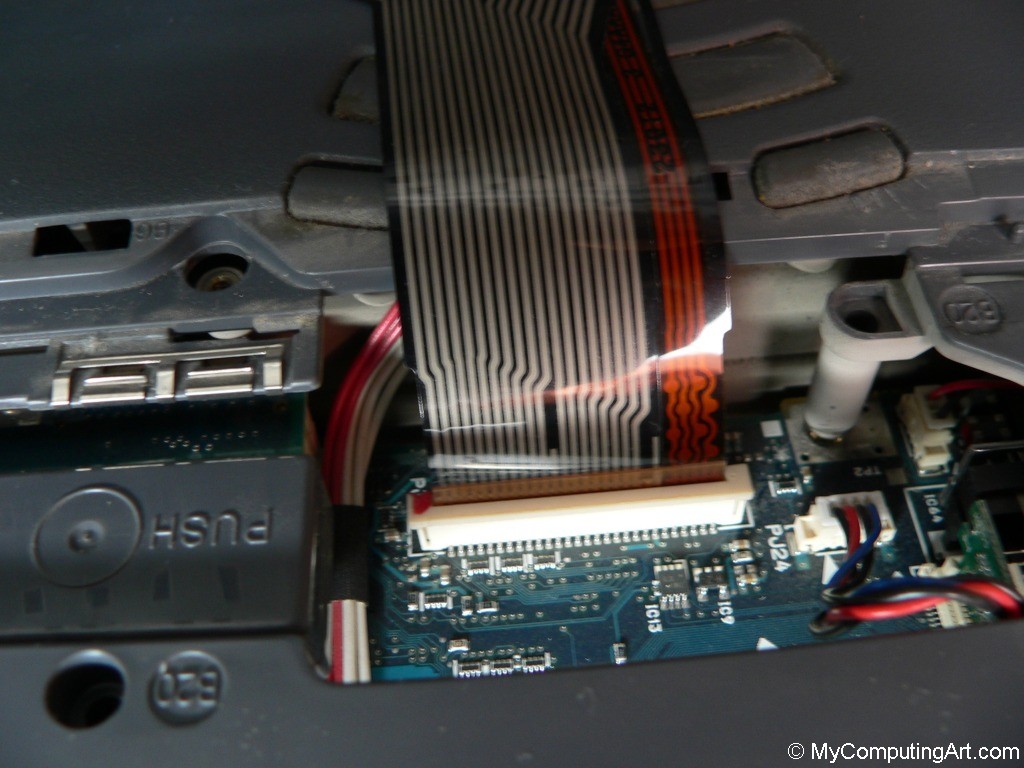

Kbd slot
181.34 KB

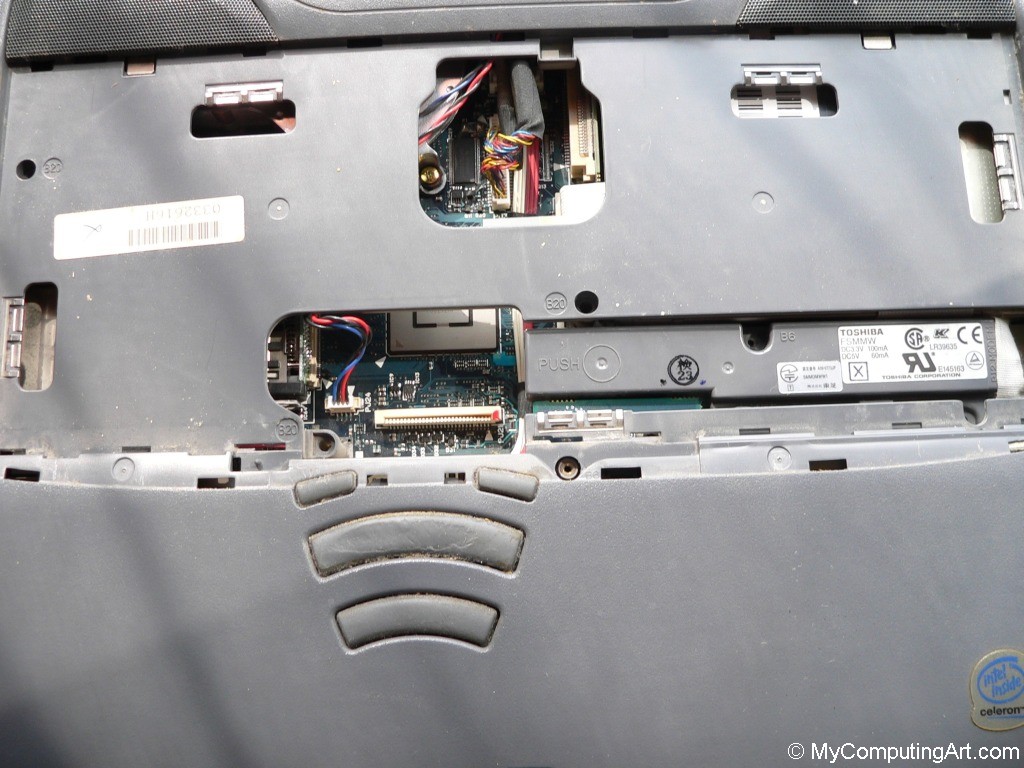

With cover
207.74 KB

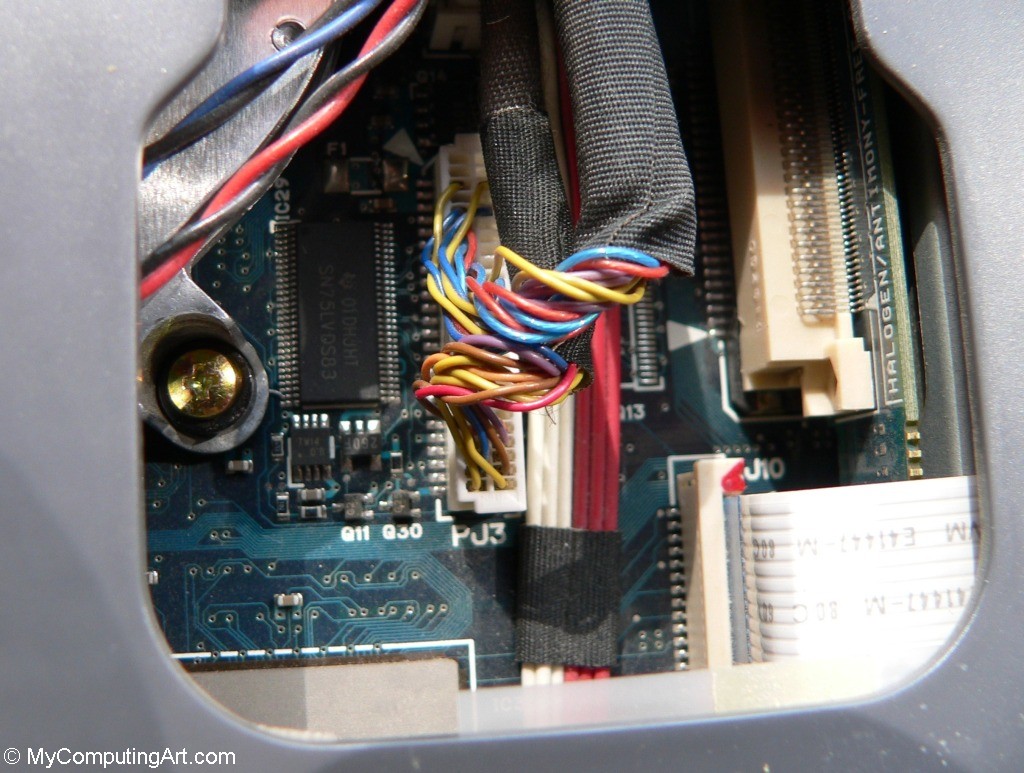

Opening
213.68 KB

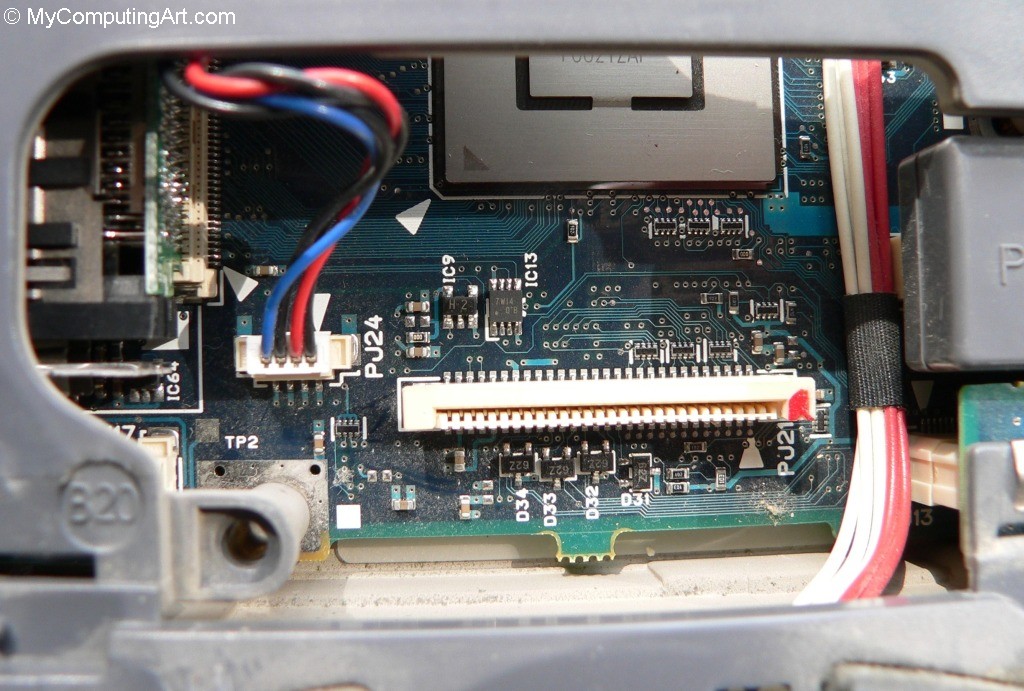

Opening
200.65 KB

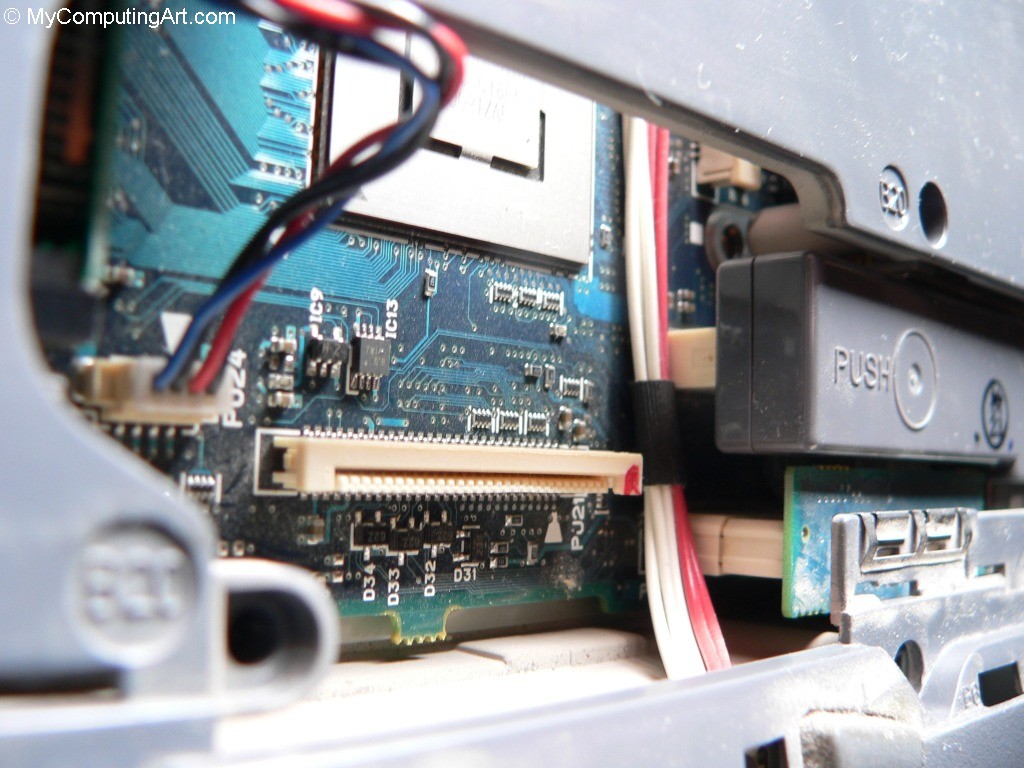

Opening
209.32 KB

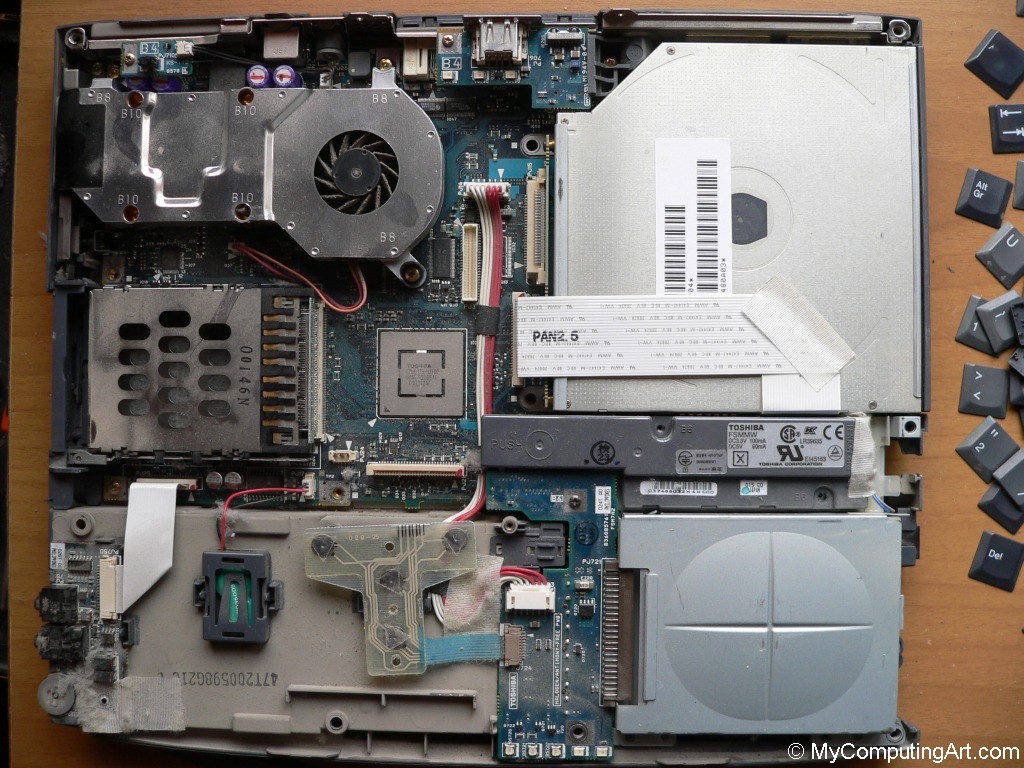

With fan
263.37 KB

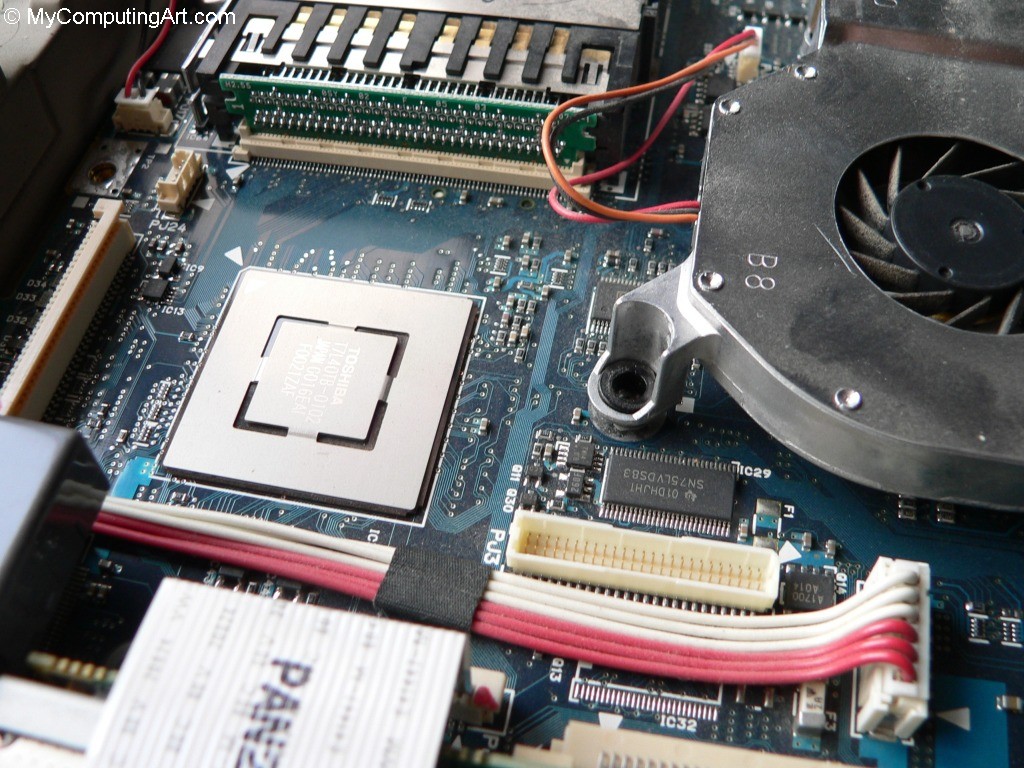

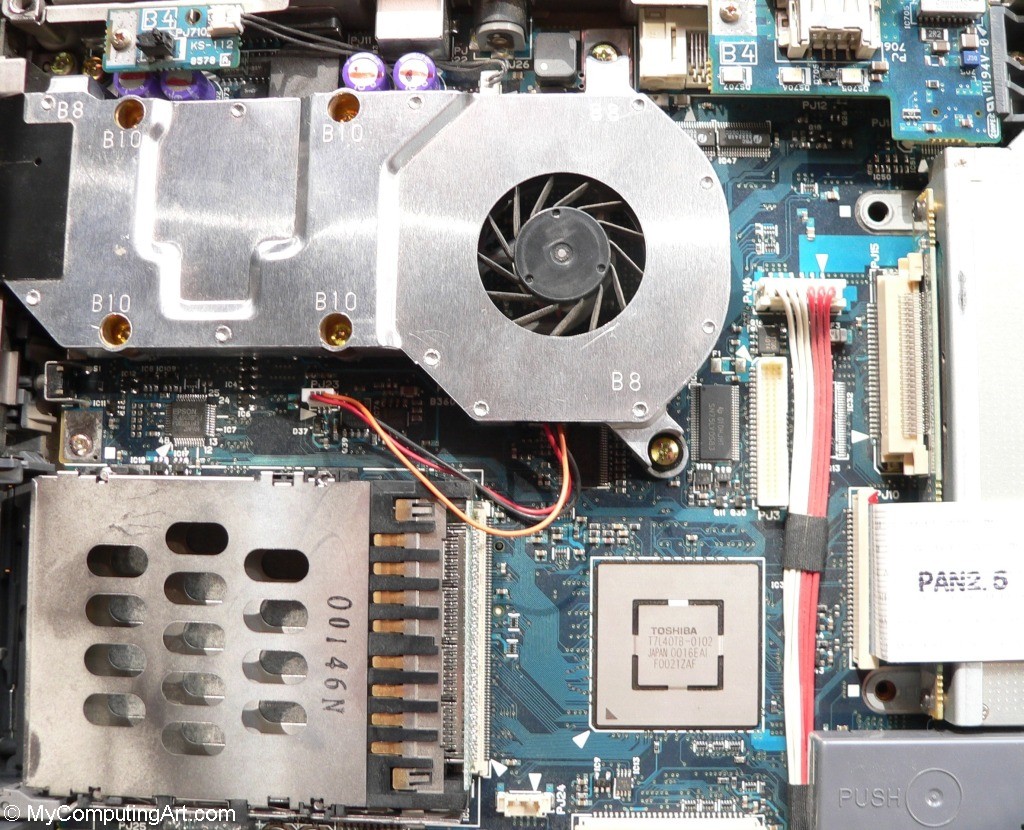

Detail
263.73 KB
Detail
304.76 KB

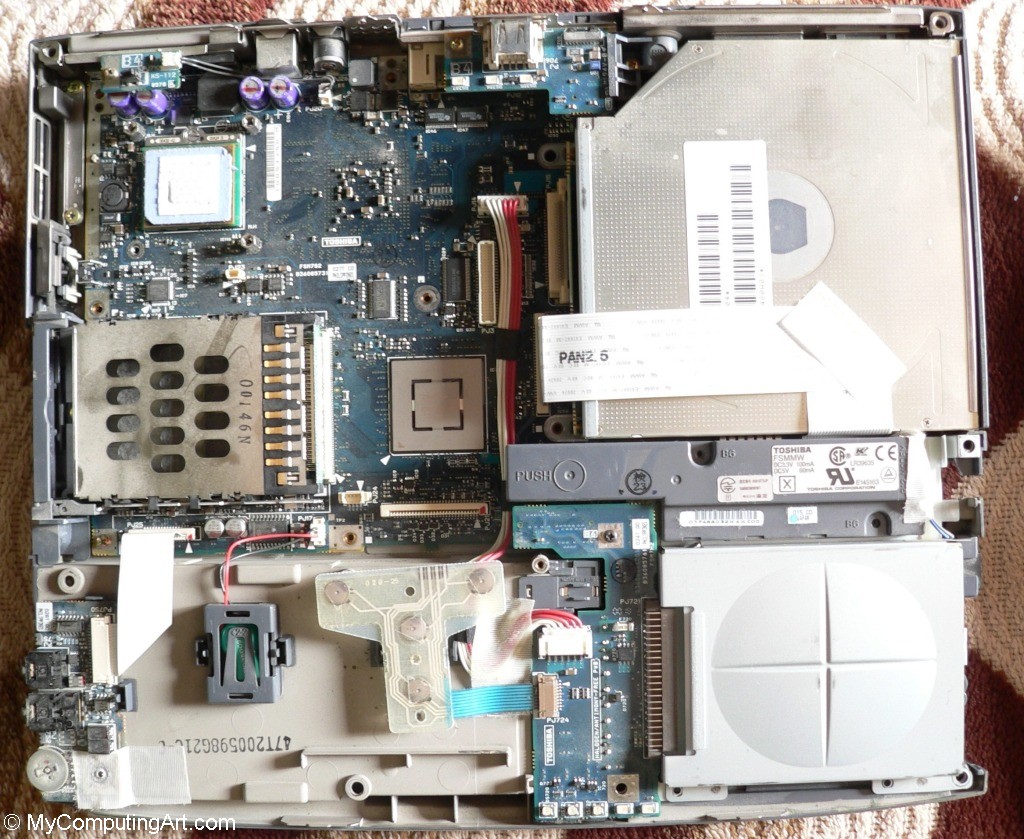

Without fan
286.99 KB

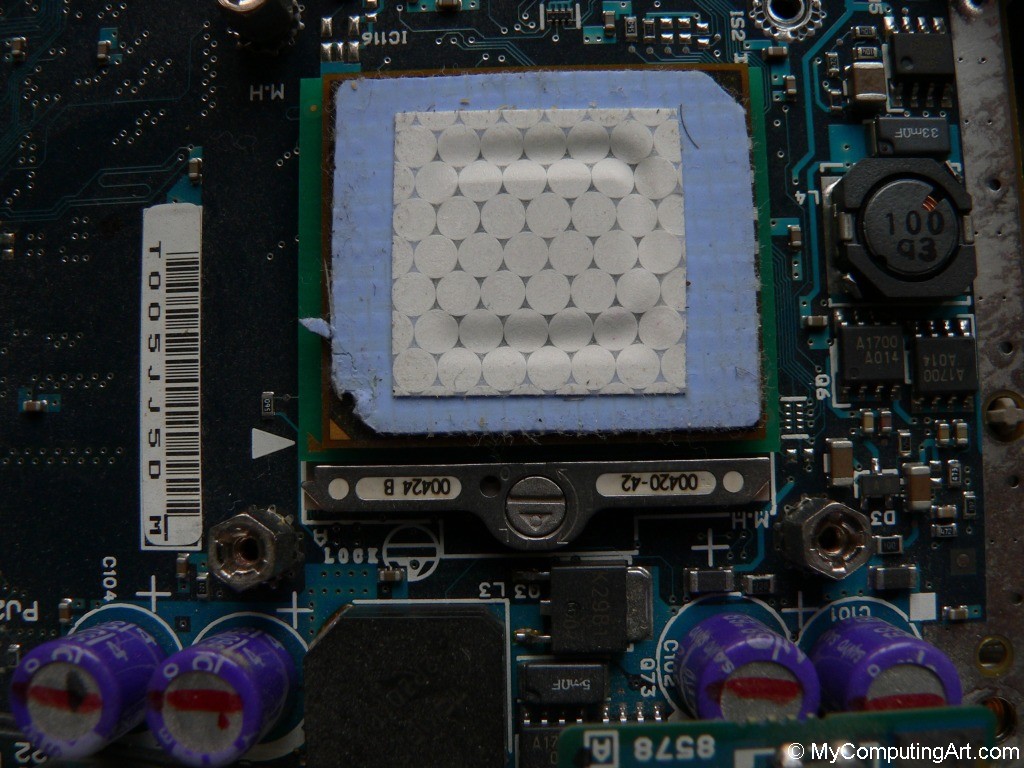

Celeron 500
229.10 KB

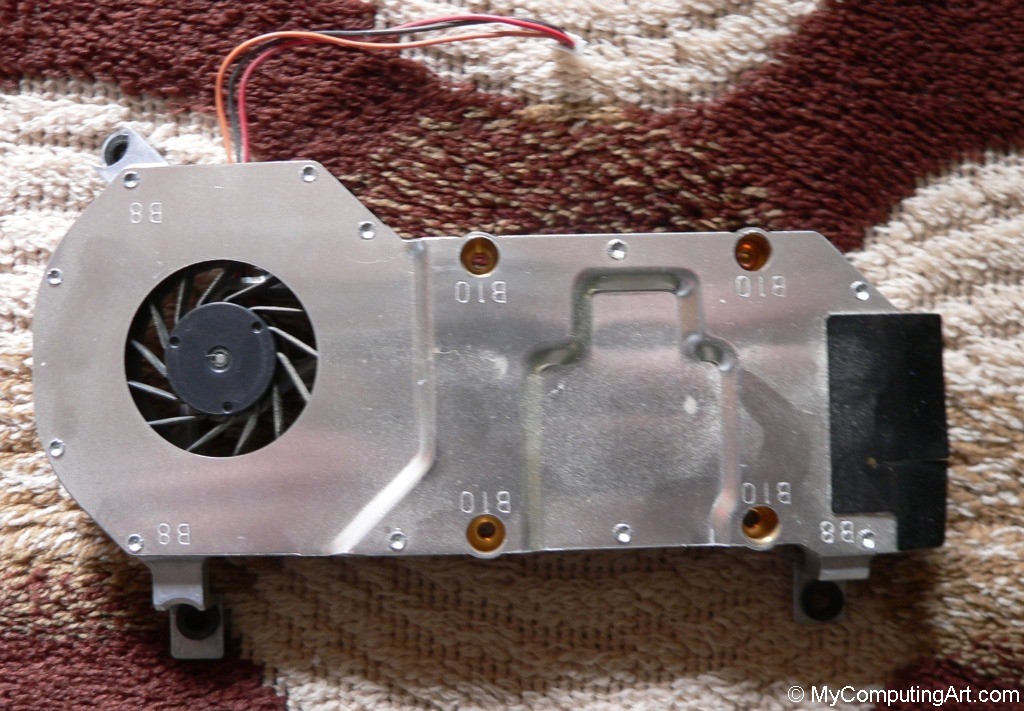

Fan
213.08 KB

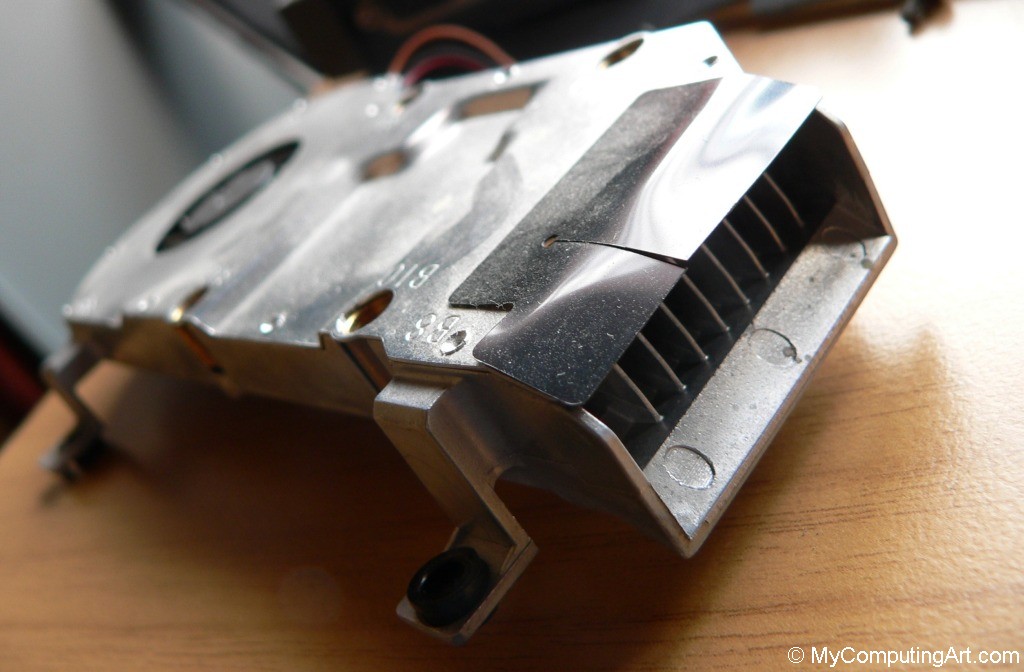

Fan exhaust
130.31 KB

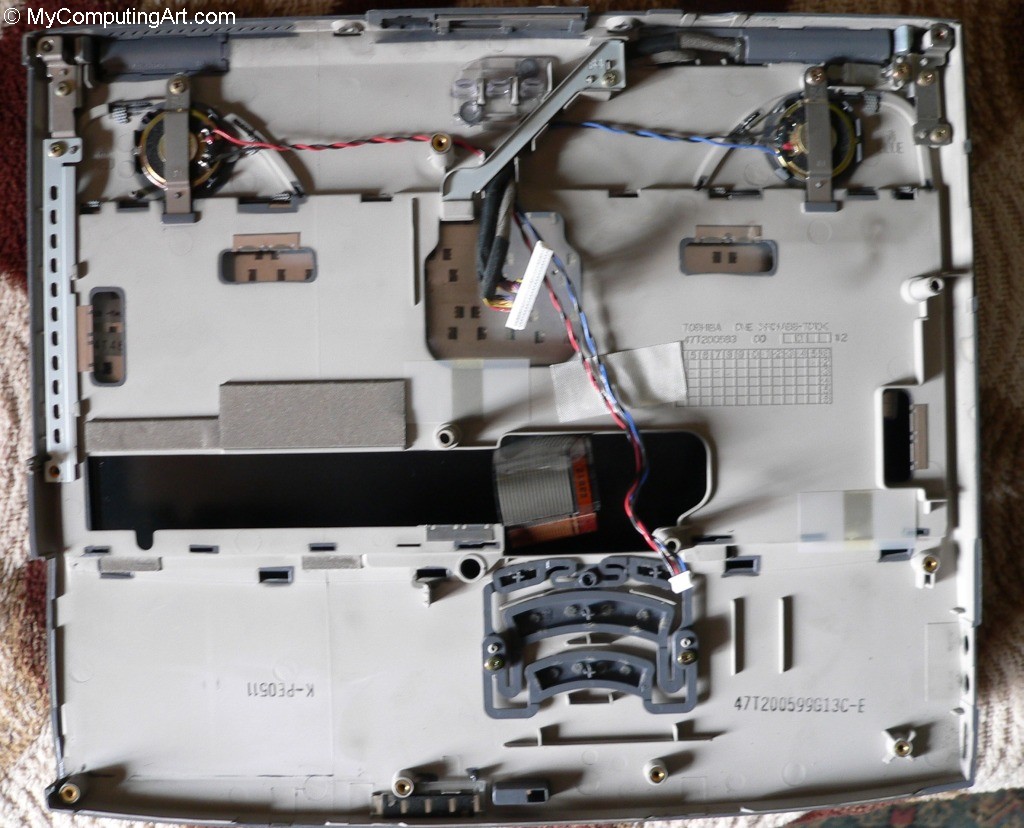

Monitor
200.67 KB

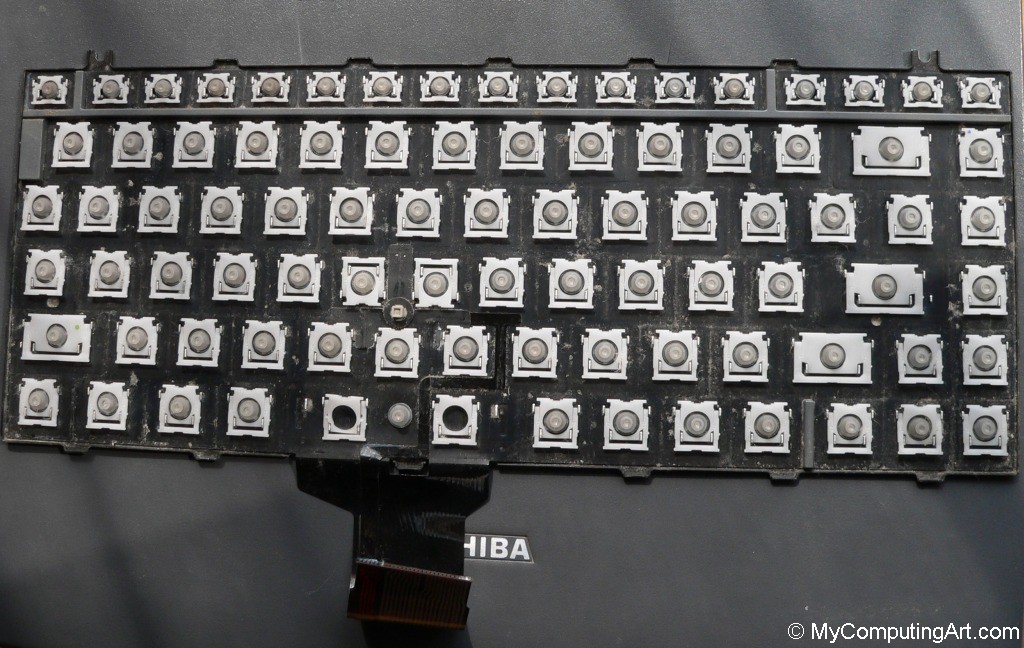

Naked kbd
224.22 KB

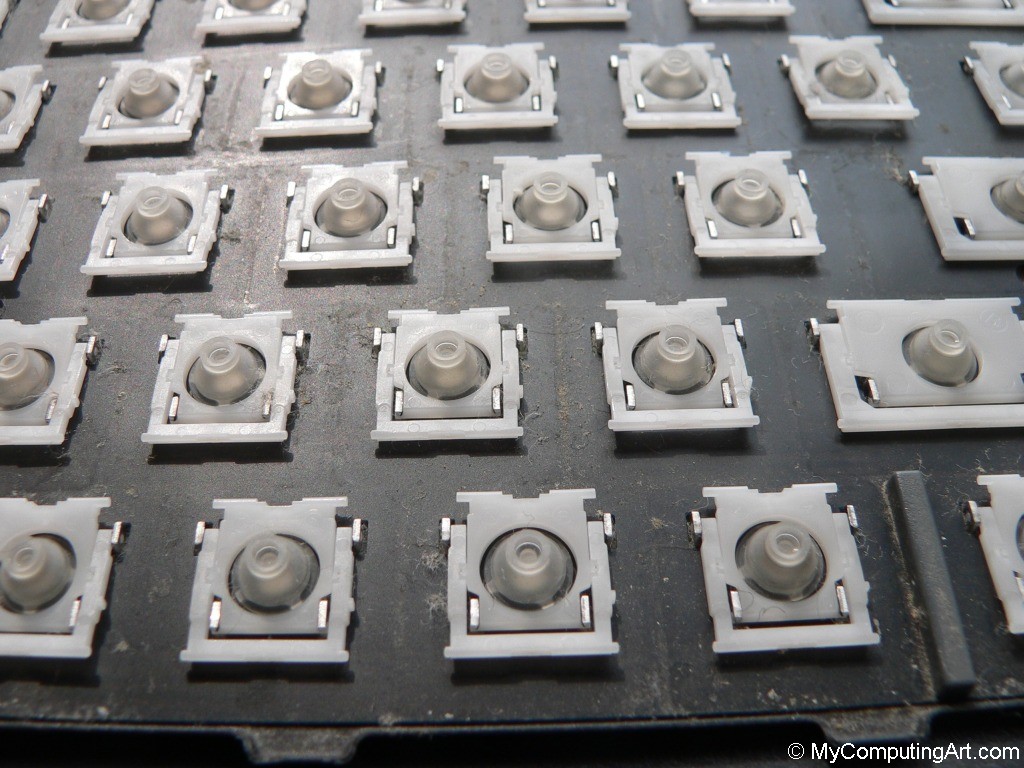

Keys
226.87 KB

Aug 29 2013
Same problem of Aug 12 2012, the display becomes dark at some positions, with a barely visible shadow, but now it's worse: moving the cable is not enough, and looking attentively at the cable I see it's ruined; with the notebook opened up and switched on I can even see a few little sparks.
I found on ebay an used replacement cable, I ordered and replaced it. It works, I spent less than 20 euros and I can go on using my 13 years old notebook as a wireless rdp terminal.
Here are the steps to replace the screen cable after opening up the Toshiba SP4270:

Hidden screw
140 KB
Hidden screws
350 KB
Screen mounted
200 KB
Without frame
200 KB
Left metal block
235 KB
Right metal block
215 KB
Screen card
295 KB
Screen and cable
190 KB
Back screen connector
125 KB
Back cover and base
210 KB
It's working
230 KB
Old cable
230 KB
